Automatic rain wiper headlight sensor

 Automatic Rain Wiper Sensor and Headlight Sensor for Toyota

Rain wiper, headlight sensor specification:

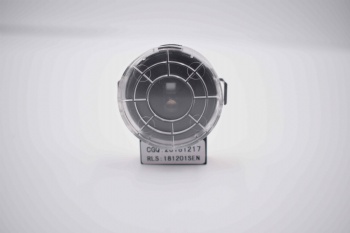

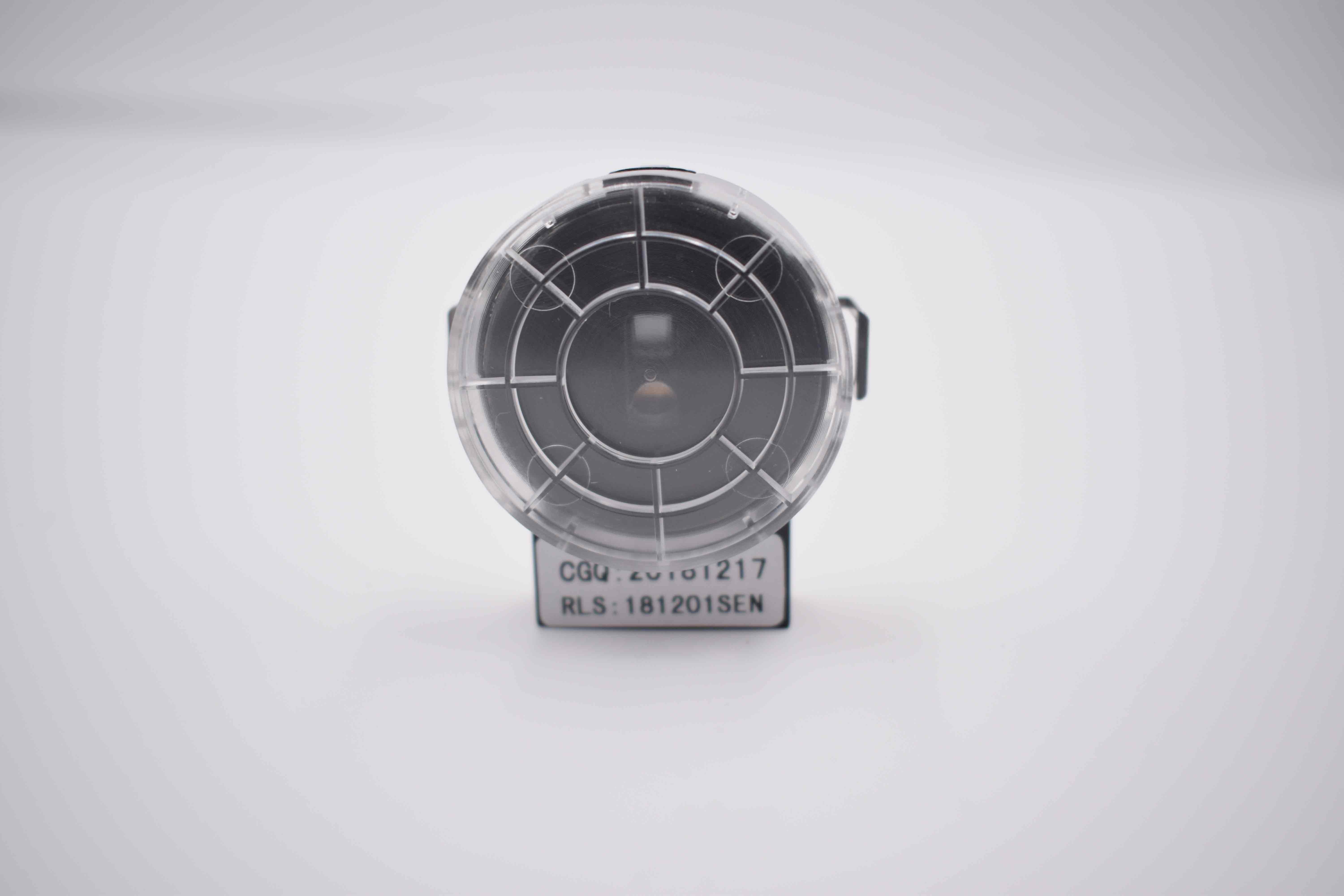

1)Sensor type:IR reflection rain sensor

2)Sensor detection for light channel: 4 channels

3)sensor detection available area: 900(mm)²(almost all front car area)
4)Sensor detection available point: 4
5)Sensor circuit emissive source: IR reflection led(imported famous brand)
6)Sensor circuit emissive source wavelength: 850 nm
7)Sensor circuit receiving tube: IR receiving tube(imported brand name)
8)Sensor circuit receiving source wavelength: 850 nm
9)Sensor detection response time:0.5 S
10)Sensor detection flexibility: automatically adapt different refractive index on the front
window glass (by setting button)
11)Sensor detection rainfall amount: 5 levels : foggy, Sprinkle, moderate rain, heavy rain,
rainstorm
12)Rain flexibility setting: 3 levels setting
13)Light detection :Automatically recognize the day time, night, tunnel and tree shade
mode

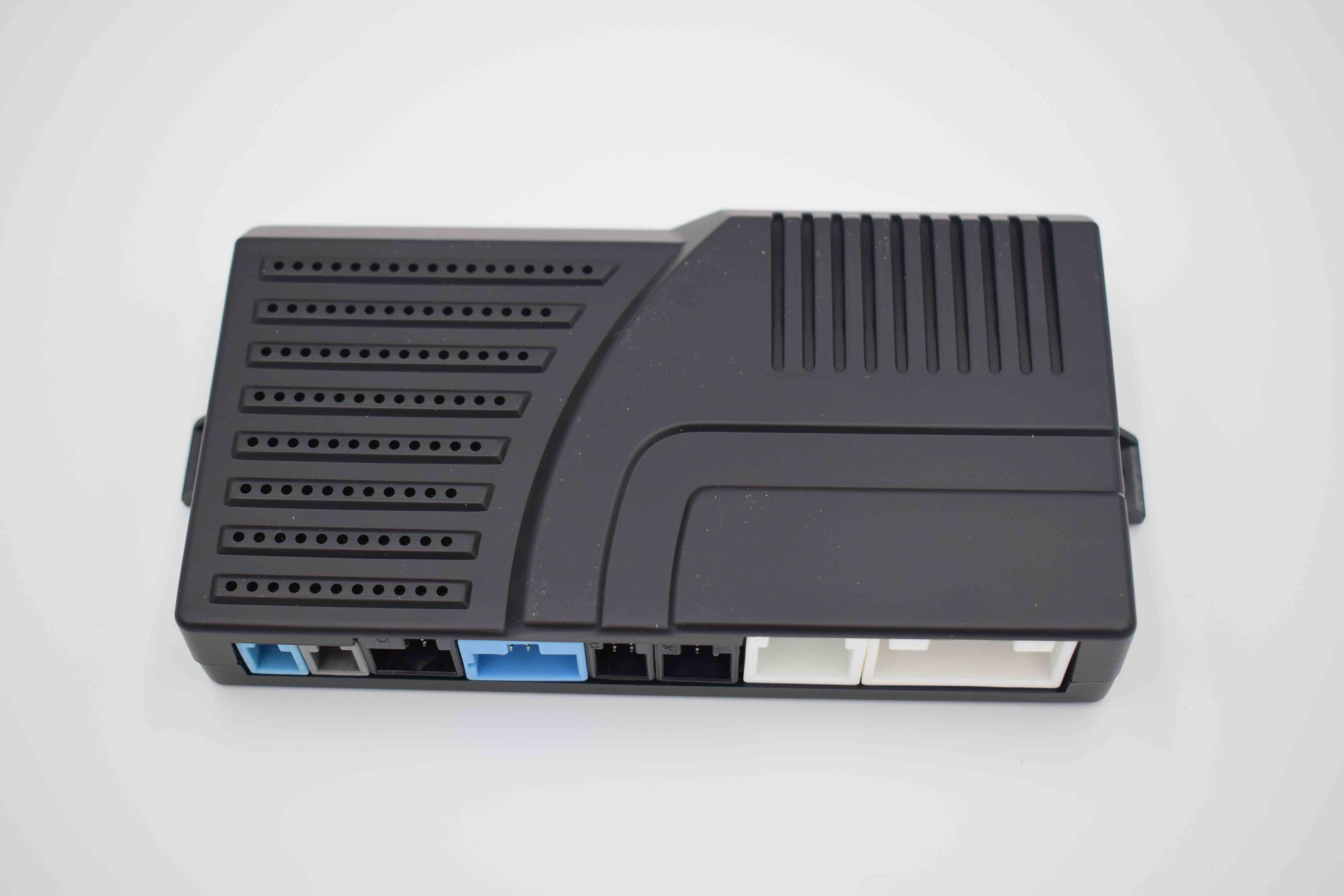

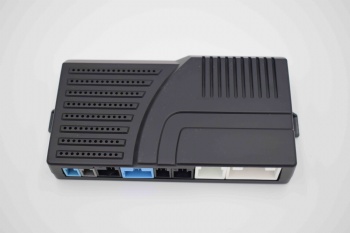

14)Temperature detection: when at high temperature, low temperature etc. the control
box will give warning through the buzzer.

Additional Hidden Features

-Not every car model has the complete hidden features, it depends.

-Please confirm with us to make sure which hidden functions your model covers.

Activating Setting ups
